Understanding Mica's Superior Thermal, Electrical, and Mechanical Properties
Quick Summary / Key Takeaways
- Mica offers elevated thermal resistance suitable for sustained operation in high-temperature industrial environments, supporting applications where polymeric insulation materials are unsuitable due to thermal degradation.
- Its inherent dielectric strength and electrically insulating behavior make it appropriate for electrical insulation functions in high-voltage and high-temperature systems when manufactured and qualified to applicable IEC, ASTM, or equivalent standards.
- Mica’s layered crystalline structure provides mechanical stability and dimensional integrity under continuous thermal exposure and electrical operating stress.
- Controlled mineral selection, lamination processes, and thickness control are critical to achieving repeatable electrical, thermal, and mechanical performance in industrial-grade mica products.
- Engineers use mica for electrical insulation, thermal management, and protective barrier functions across sectors such as aerospace, EV power systems, energy, and defense, where predictable performance under combined thermal and electrical stress is required.
Introduction
Engineers and manufacturers across industries require materials capable of operating reliably under defined extreme thermal, electrical, and mechanical conditions. A mica sheet serves as a foundational engineering material in these environments, offering a measurable combination of thermal stability, dielectric insulation, and mechanical integrity relevant to safety, durability, and long service life in demanding applications.
This natural mineral, processed into controlled, specification-qualified sheet forms, provides resistance to elevated temperatures, high electric field stress, and sustained mechanical loading when selected and applied within established design limits. Its inherent material behavior, derived from a layered aluminosilicate crystalline structure, delivers performance characteristics that are well documented and widely validated compared with polymeric or fully synthetic alternatives.
This section examines the material properties, processing considerations, and performance characteristics that make mica a commonly selected component in aerospace systems, electric vehicle power architectures, advanced electronics, and defense applications. Understanding its composition and manufacturing controls enables engineers to incorporate appropriate mica grades with confidence, supporting predictable performance and controlled failure margins over extended operating lifecycles.
Key Performance Characteristics of Sheet Mica
| Characteristic | Typical Value | Benefit in Application | Relevant Industry Standard |
|---|---|---|---|
| Thermal Resistance | Muscovite: Continuous service ~500 °C; intermittent service ~800 °C Phlogopite: Continuous service ~700 °C; intermittent service ~1000 °C | Maintains thermal stability and insulation performance under sustained and intermittent high-temperature operating conditions | IEC 60371-2 |
| Dielectric Strength | ≈25 kV/mm at 20 °C; ≈13 kV/mm at 400 °C; ≈10 kV/mm at 600 °C | Provides predictable electrical insulation performance across elevated temperature ranges | IEC 60243 |
| Flexural Strength | Muscovite: ~230 N/mm² Phlogopite: ~170 N/mm² | Supports mechanical integrity of insulation components during assembly, clamping, and in-service loading | ISO 178 |
| Chemical Stability | Resistant to oils, fuels, and common industrial chemicals; water absorption <1 % (24 h / 23 °C) | Ensures long-term durability in electrically and thermally demanding industrial environments | IEC 60371-2 |
Comparison of Mica Forms for Industrial Use
| Mica Form | Primary Composition | Typical Application | Key Advantage |
|---|---|---|---|
| Muscovite Mica Sheet | Potassium aluminum silicate (KAl₂(AlSi₃O₁₀)(OH)₂) | High-voltage insulation, capacitors | High dielectric strength and stable electrical performance across elevated temperature ranges |
| Phlogopite Mica Sheet | Magnesium aluminum silicate (KMg₃(AlSi₃O₁₀)(OH)₂) | High-temperature heating elements | Superior thermal resistance (continuous ~700 °C; intermittent up to ~1000 °C) for severe thermal environments |
| Reconstituted Mica | Mica paper impregnated with silicone or epoxy resin | Gaskets, thermal barriers, electrical insulation | Uniform thickness control and scalable large-format sheet production |
| Mica Tape | Mica paper reinforced with glass fiber and resin systems | Motor/generator coil insulation | High dielectric performance combined with flexibility and conformability for winding and wrapping applications |
Pre-Design & Material Qualification Checklist
- Confirm mica sheet grade, thickness range, and supply form meet defined thermal class, dielectric performance requirements, and anticipated mechanical loading conditions.
- Verify supplier certifications, batch traceability, and documented quality-control procedures applicable to industrial-grade mica sheet manufacturing.
- Conduct pilot, qualification, or type testing of mica components under simulated electrical, thermal, and mechanical service conditions representative of the end use.
- Integrate mica into the design with explicit consideration for thermal expansion behavior, mounting and fastening methods, edge clearances, and interface stresses.
Post-Delivery Validation & In-Service Performance Review Checklist
- Review in-service performance data for mica under actual electrical, thermal, mechanical, and environmental operating conditions.
- Analyze any observed failure modes, degradation mechanisms, or dimensional changes that may affect insulation integrity or mechanical function.
- Evaluate opportunities for mica grade refinement, thickness optimization, or alternative mica formats based on validated performance data.
- Update internal design specifications, qualification criteria, and material selection guidelines based on documented post-deployment performance feedback.
Table of Contents
Section 1: UNDERSTANDING MICA COMPOSITION
- What is the primary material composition of a mica sheet?
- How do different mica types influence sheet properties?
- What role do binders play in engineered mica sheets?
- How is consistent thickness achieved in mica sheet manufacturing?
Section 2: THERMAL AND ELECTRICAL PERFORMANCE
- What thermal resistance capabilities do mica sheets offer?
- Mica sheets and exceptional electrical insulation
- What is the dielectric strength of typical mica sheets?
- How does mica resist flame and high temperatures?
Section 3: MECHANICAL STABILITY AND RELIABILITY
- How does mica maintain dimensional integrity under stress?
- What factors contribute to mica's long-term reliability?
- How does mica resist chemical degradation?
- What are the key mechanical properties of mica sheets?
Section 4: APPLICATIONS AND QUALITY ASSURANCE
- Where are mica product forms commonly used in industrial applications?
- What quality control measures ensure consistent mica sheet performance?
- How do engineers select the right mica sheet for specific needs?
Frequently Asked Questions
Section 1: UNDERSTANDING MICA COMPOSITION
FAQ 1: What is the primary material composition of a mica sheet?

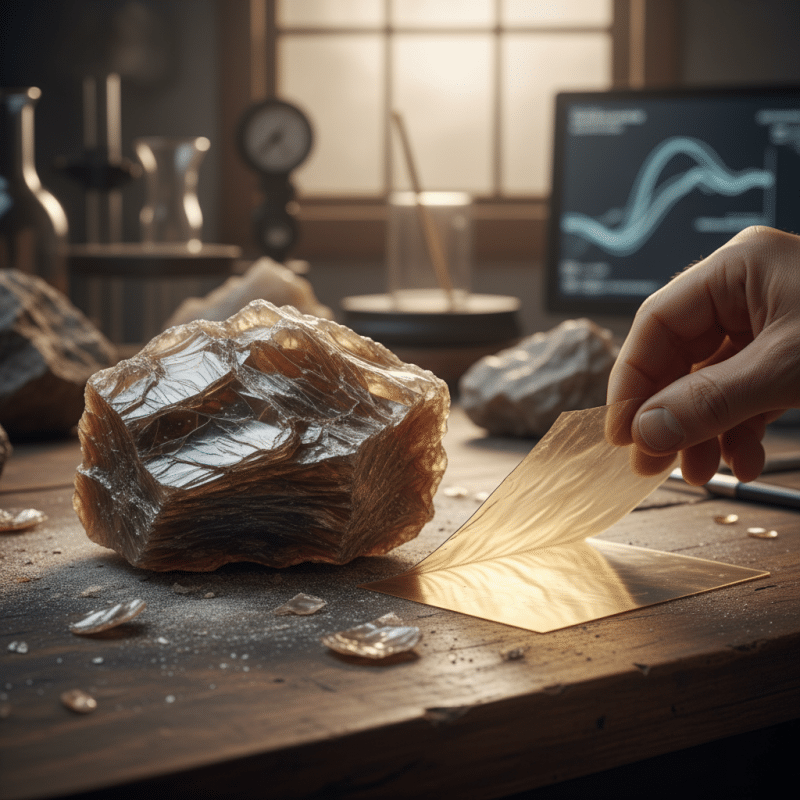

A mica sheet primarily consists of naturally occurring aluminosilicate minerals, most commonly muscovite or phlogopite, which are characterized by a layered crystalline structure. These minerals contain elements such as potassium, aluminum, magnesium, silicon, and structurally bound water, contributing to high thermal stability, electrical insulation capability, and chemical resistance.
In industrial-grade mica, high-purity mica flakes (typically ~85–90% by content) are reconstituted and bonded using a high-temperature silicone resin binder (typically ~10–15%), forming a controlled composite laminate rather than loose natural flakes. This engineered structure enables uniform thickness control, specification-consistent dielectric performance, and improved mechanical integrity compared to raw mica, supporting reliable use in electrical and thermal insulation systems.
FAQ 2: How do different mica types influence sheet properties?
Different mica types, primarily muscovite and phlogopite aluminosilicates, significantly influence mica sheet performance, particularly thermal class, dielectric behavior, and mechanical stability. Muscovite mica is characterized by high dielectric strength and good tensile and bending strength, making it well-suited for electrical insulation applications where electric field stress and dimensional stability are primary design constraints. In insulation-grade sheets, muscovite typically supports continuous service temperatures of approximately 500 °C and intermittent exposure up to approximately 800 °C.
Phlogopite mica provides higher thermal resistance, with continuous service temperatures of approximately 700 °C and intermittent capability up to approximately 1000 °C, while maintaining comparable dielectric insulation performance across elevated temperature ranges. This makes phlogopite preferable for high-temperature electrical and thermal applications where sustained heat exposure exceeds the service limits of muscovite-based materials.
The selection between muscovite and phlogopite is therefore driven by defined thermal class, applied electrical stress, and mechanical loading under operating conditions. For example, capacitors, commutators, and high-voltage insulation components typically use muscovite, while heating elements, industrial furnaces, and high-temperature electrical equipment more often use phlogopite.
FAQ 3: What role do binders play in engineered mica sheets?
Binders play a critical role in engineered mica sheets by bonding and consolidating individual mica flakes into a coherent, dimensionally stable laminate suitable for industrial use. High-temperature silicone resin binder systems are commonly employed, providing mechanical cohesion, resistance to delamination, and stable performance under sustained electrical and thermal loading.
The binder system directly influences flexural behavior, machinability (cutting, punching, drilling), moisture resistance, and long-term thermal endurance of the sheet. In insulation-grade mica laminates, controlled binder content and uniform resin impregnation are essential to achieve consistent thickness control, predictable dielectric behavior, and repeatable mechanical integrity across production batches. Without a properly selected and processed binder system, mica flakes would remain mechanically discrete and unsuitable for engineered insulation or structural sheet applications.
FAQ 4: How is consistent thickness achieved in mica sheet manufacturing?
Consistent thickness in mica sheet manufacturing is achieved through controlled raw material preparation, uniform flake layering, and tightly regulated pressing parameters rather than manual adjustment or post-process correction. High-purity mica flakes are metered and distributed in defined layer builds, then bonded under controlled pressure and temperature profiles to form a homogeneous laminate. Calendering and hot-pressing processes ensure uniform binder distribution and compaction, minimizing thickness variation across the sheet.
In-process dimensional verification using calibrated measurement systems is applied throughout production to maintain specified thickness tolerances in accordance with insulation-grade manufacturing requirements. This level of process control is critical for applications where electrical clearance, dielectric uniformity, and predictable thermal behavior depend directly on sheet thickness.
Section 2: THERMAL AND ELECTRICAL PERFORMANCE
FAQ 5: What thermal resistance capabilities do mica sheets offer?
Mica offers high thermal resistance suitable for sustained operation in elevated-temperature industrial environments, with phlogopite mica supporting continuous service temperatures of ~700 °C (1290 °F) and intermittent exposure up to ~1000 °C (1832 °F), and muscovite mica supporting continuous service temperatures of ~500 °C (932 °F) with intermittent exposure up to ~800 °C (1470 °F). This thermal stability stems from its inorganic, layered aluminosilicate crystalline structure, which remains dimensionally and chemically stable at temperatures where polymeric insulation materials degrade.
Mica sheets function as thermal insulation and heat-resistant electrical barriers, maintaining mechanical integrity and insulating performance under sustained heat exposure rather than acting as primary heat-transfer blockers. This behavior is critical in high-temperature electrical insulation systems, heating equipment, furnaces, and EV power and battery-adjacent insulation components where predictable thermal endurance and fire resistance are required.
FAQ 6: Mica sheets and exceptional electrical insulation
Mica provides exceptional electrical insulation due to its high dielectric strength, thermally stable dielectric behavior across operating temperature ranges, and low dielectric loss characteristics appropriate for insulation-grade laminates. Its layered aluminosilicate crystalline structure is electrically non-conductive and resists charge migration under high electric field stress. In engineered sheet form, controlled lamination and uniform silicone-resin impregnation support consistent electrical performance and dimensional stability under sustained voltage and temperature exposure.
The material’s chemical and thermal stability reduces susceptibility to electrical aging mechanisms such as surface tracking or localized discharge when specified within applicable electrical stress limits and qualification standards (e.g., IEC 60243). These characteristics make insulation-grade mica sheets suitable for electrical insulation components in transformers, capacitors, motors, generators, and high-voltage assemblies where predictable dielectric performance and long service life are required.
FAQ 7: What is the dielectric strength of typical mica sheets?
The dielectric strength of typical insulation-grade mica sheets is specification-dependent and must be defined by test method, thickness, and operating temperature rather than expressed as a single nominal range. For silicone-resin-bonded muscovite and phlogopite mica sheets manufactured in accordance with IEC requirements, dielectric strength is typically ~25 kV/mm at 20 °C, decreasing to ~13 kV/mm at 400 °C and ~10 kV/mm at 600 °C, as measured in accordance with IEC 60243-1. Muscovite mica generally exhibits slightly higher dielectric strength at ambient temperature, while phlogopite maintains more stable dielectric performance at elevated temperatures.
Dielectric strength is influenced by mica mineral type, sheet thickness, binder system, impregnation uniformity, and void content. Controlled lamination, uniform binder impregnation, and tight thickness tolerances are critical to minimizing localized electric field intensification that can reduce breakdown performance. Consequently, dielectric strength values must be evaluated in the context of actual operating temperature, applied electric field, and the applicable test standard rather than inferred from generalized ranges.
FAQ 8: How does mica resist flame and high temperatures?
Mica resists flame and high temperatures due to its inorganic, non-combustible aluminosilicate mineral composition and high thermal decomposition threshold. Unlike organic or polymeric materials, mica does not sustain combustion and does not melt, drip, or propagate flame when exposed to elevated temperatures. Its layered crystalline structure remains thermally and chemically stable at temperatures well above the limits of organic insulation materials, allowing mica sheets to function as fire-exposed, heat-resistant electrical insulation elements rather than fuel sources under fire exposure.
This inherent non-flammability supports use in fire-exposed electrical insulation, high-temperature equipment, and safety-critical assemblies where maintaining insulation integrity and limiting flame propagation are required. Fire resistance performance is determined by material composition, binder system, and applicable component- or system-level qualification standards rather than by mica acting as an active flame suppressant.
Section 3: MECHANICAL STABILITY AND RELIABILITY
FAQ 9: How does mica maintain dimensional integrity under stress?
Mica sheets maintain dimensional integrity under stress primarily due to its layered aluminosilicate crystalline structure and the controlled lamination processes used in insulation-grade engineered forms. This structure provides high in-plane stiffness and low creep behavior, allowing the material to resist deformation under sustained mechanical load and elevated temperature exposure. In engineered mica sheets, high-temperature silicone binder systems enhance interlayer cohesion, reducing the risk of delamination, cracking, or thickness variation during thermal cycling.
This dimensional stability supports consistent electrical clearances, insulation thickness, and component fit over extended operating lifecycles. When specified within rated compressive and thermal limits, mica sheets maintain geometry and thickness under sustained compression and repeated thermal loading, which is critical for reliable electrical and thermal insulation performance.
FAQ 10: What factors contribute to mica's long-term reliability?
Mica’s long-term reliability stems from its inorganic aluminosilicate mineral composition, which provides high thermal stability, chemical inertness, and stable dielectric behavior over extended operating lifetimes. Unlike polymeric insulation materials, insulation-grade mica does not exhibit thermal embrittlement, oxidative degradation, or rapid property drift when operated within its defined thermal class and electrical stress limits. As a result, dielectric strength, volume resistivity, and mechanical integrity remain stable under prolonged exposure to elevated temperature, electric field stress, and cyclic operating conditions.
Long-term performance is further governed by raw material purity, controlled flake size distribution, uniform lamination, and precise thickness control during manufacturing. These factors minimize voids, inclusions, and internal stress concentrations that could otherwise accelerate electrical aging or mechanical degradation. When produced and specified to applicable IEC or ISO material standards, mica delivers predictable and repeatable performance in long-service electrical and thermal insulation applications.
FAQ 11: How does mica resist chemical degradation?
Mica resists chemical degradation due to its highly stable aluminosilicate crystalline structure, which is largely inert to most acids, alkalis, and solvents. Its non-porous nature, particularly in dense sheet forms, prevents chemical ingress and subsequent reactions. This chemical stability ensures that mica components maintain their integrity and performance even when exposed to corrosive environments or cleaning agents. This property is particularly valuable in industrial settings, chemical processing equipment, and certain battery chemistries where material compatibility is crucial for safety and long-term durability. Mica does not react with common industrial chemicals, including oils, fuels, and most solvents.
FAQ 12: What are the key mechanical properties of mica sheets?
Key mechanical properties of mica sheets include high flexural strength, compressive stability, and excellent dimensional integrity under both thermal and electrical service conditions. Its layered aluminosilicate crystalline structure imparts high in-plane stiffness, enabling the material to resist bending and deformation when adequately supported. In engineered mica sheets, controlled binder impregnation and uniform lamination enhance interlayer cohesion, tensile strength, and resistance to delamination during machining, assembly, and operation.
These properties ensure mica components maintain consistent thickness, flatness, and mechanical integrity under sustained mechanical loading, vibration, and thermal cycling. Although mica is not typically used as a primary structural load-bearing material, its mechanical stability makes it suitable for insulation, spacing, and supporting functions in electrically and thermally demanding industrial applications.
Section 4: APPLICATIONS AND QUALITY ASSURANCE
FAQ 13: Where are mica product forms commonly used in industrial applications?
Mica products are commonly used in industrial electrical and thermal insulation applications where elevated service temperatures, stable dielectric performance, and dimensional integrity are required. Typical sectors include aerospace, electrical insulation and non-structural thermal isolation components, electric vehicle battery and power electronics insulation systems, and electrical equipment such as capacitors, heaters, motors, and generators. In defense and heavy industry, mica is selected for high-temperature electrical insulation in systems exposed to sustained thermal and electrical stress.
Mica is also widely applied in industrial furnaces, induction and arc heating equipment, high-voltage assemblies, and power generation systems where polymeric insulation materials cannot meet the required thermal class or dielectric endurance. In these applications, mica functions as a heat-resistant electrical barrier and spacing material rather than a load-bearing element, supporting safe and reliable operation under demanding service conditions.
FAQ 14: What quality control measures ensure consistent mica sheet performance?
Quality control measures ensuring consistent mica sheet performance include standards-based raw material verification, controlled process parameters, and performance testing aligned with applicable IEC and ISO methods. Raw mica flakes are inspected for mineral type, purity, and particle size distribution in accordance with internal material specifications derived from IEC 60371-2 requirements for mica products.
Manufacturing processes are tightly controlled through documented process controls and inspection checkpoints governing binder content, impregnation uniformity, pressing temperature, and pressure to achieve consistent density, thickness, and laminate integrity. In-process dimensional checks and post-processing inspections are performed to ensure compliance with specified tolerances.
Final product validation includes:
Dielectric strength testing per IEC 60243,
Thermal performance verification per IEC 60371-2,
Dimensional inspection, and
Mechanical property checks (including bending strength per ISO 178 and tensile strength per ISO 527).
Material traceability and batch identification are maintained to support repeatability, quality audits, and application-specific qualification requirements.
FAQ 15: How do engineers select the right mica sheet for specific needs?
Engineers select the appropriate mica sheet by thoroughly evaluating the specific thermal, electrical, and mechanical requirements of their application. Key considerations include the maximum operating temperature, required dielectric strength, mechanical stress, and chemical exposure. The choice between muscovite and phlogopite mica depends on the application’s thermal profile, with phlogopite offering superior high-temperature performance. Mechanical performance requirements are evaluated using standardized test data, such as bending strength (ISO 178) and tensile strength (ISO 527), while the binder system plays a critical role in determining mechanical strength, flexibility, and overall formability.
Engineers must reference detailed product specifications, IEC-compliant material data sheets, and conduct application-specific testing to ensure suitability for the intended use. Selecting the right material requires close alignment between mica properties and application demands. Collaboration with experienced mica manufacturers ensures adherence to IEC standards such as IEC 60243 for dielectric strength, IEC 60371-2 for thermal properties, and ISO standards for mechanical testing. This expertise supports reliable long-term performance in electrically and thermally demanding operating environments.
