Mica Sheets: The Complete Buyer's Guide for Industrial Applications
In high-temperature and high-voltage environments, material selection directly affects performance, safety, and service life. Mica sheets are used across industrial applications because they provide stable thermal resistance and strong electrical insulation.
For engineers and sourcing teams, selecting the right mica material is critical. The wrong mica sheet can lead to insulation failure, reduced efficiency, or premature component damage.
This guide explains what mica sheets are, the differences between mica types, and how to choose the right mica insulation sheet based on application requirements.
What Are Mica Sheets?
Mica sheets are insulation materials made from natural mica minerals. Manufacturers bond mica layers with high-temperature resins to form stable sheets. These sheets provide both thermal resistance and electrical insulation in industrial systems.
The manufacturing process starts by splitting raw mica into thin layers. These layers are combined with binders such as silicone or epoxy. They are then pressed under controlled heat and pressure to form uniform sheets. This process improves strength, ensures consistent thickness, and allows fabrication into flexible or rigid mica sheets.
Mica sheets are used where heat and voltage must be controlled at the same time. Their performance depends on three key properties:
- Thermal stability: Mica maintains its structure at high temperatures. Phlogopite mica can perform in environments approaching 1000°C, while muscovite is used for lower temperature ranges.
- Dielectric strength: Mica insulation resists electrical breakdown. It supports stable operation in high-voltage systems.
- Chemical resistance: Mica material remains stable when exposed to oils, solvents, and industrial environments.
These properties make mica sheets suitable for applications where consistent insulation and long-term reliability are required.
Types of Mica Sheets
Selecting the right mica sheet requires understanding the available material types and formats. Each type is designed for specific temperature, electrical, and mechanical conditions.
Muscovite vs Phlogopite Mica Sheets
Muscovite and phlogopite are the two primary types of mica material used in industrial applications. The choice between them depends on whether the application requires higher electrical insulation or higher temperature resistance.
Muscovite mica sheets provide high dielectric strength. They are used in applications where stable electrical insulation is required. Common uses include capacitors, circuit insulation, and other electronic components.
Phlogopite mica sheets are designed for high-temperature environments. They maintain stability at temperatures approaching 1000°C. They are used in applications such as EV battery systems, heating elements, and furnace insulation.
Muscovite is selected for electrical performance. Phlogopite is selected for thermal performance. This distinction is critical when choosing a mica insulation sheet.
Flexible vs Rigid Mica Sheets
Mica sheets are available in flexible and rigid forms. The choice depends on how the material will be installed and used.
Flexible mica sheets can be bent or wrapped around components. They are used in heating elements and applications with irregular shapes.
Rigid mica sheets provide structural support. They are used in flat surfaces, panels, and insulation boards. They maintain shape under pressure and during installation.
The correct format depends on geometry, mounting method, and mechanical stress.
Natural vs Synthetic Mica Materials
Natural mica material is widely used in industrial applications. It provides reliable thermal and electrical insulation and is cost-effective for most systems.
Synthetic mica offers higher purity and more consistent structure. It is used in applications where uniform performance is required, such as aerospace systems and high-precision electronics.
The choice depends on performance requirements, operating conditions, and consistency needs.
How to Choose the Right Mica Sheet
Selecting the correct mica sheet involves matching material properties to real operating conditions. The following factors provide a practical framework for decision-making.
Temperature Requirements
Identify both continuous and peak operating temperatures.
Phlogopite mica sheets are used in high-temperature environments. They maintain stability at temperatures approaching 1000°C. These are used in furnaces, heating systems, and EV battery insulation.
Muscovite mica sheets are used in lower temperature ranges. They are selected when electrical performance is more critical than heat resistance.
When applications involve sustained heat, temperature becomes the primary selection factor.
Electrical Insulation (Dielectric Strength)
Evaluate voltage levels and insulation requirements.
Muscovite mica insulation sheet materials provide high dielectric strength. They are used in applications where electrical stability is required, such as capacitors and high-voltage components.
Strong dielectric performance prevents electrical breakdown and improves system safety.

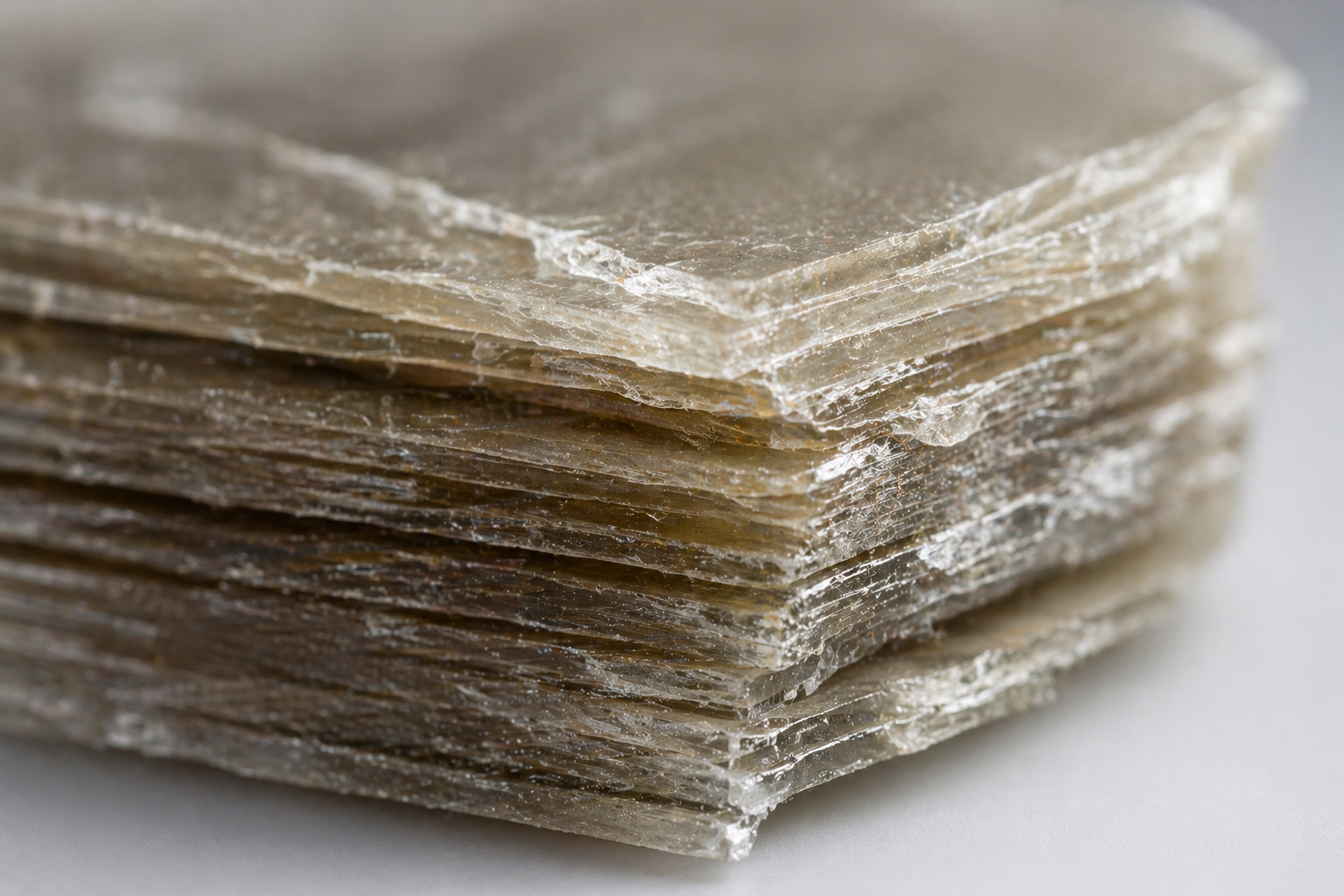

Thickness, Flexibility, and Form Factor
Select thickness based on insulation and mechanical needs.
Thicker mica sheets provide higher thermal insulation and structural strength. Thinner sheets are easier to install in compact systems.
Choose flexible mica sheets for wrapping or curved surfaces. Choose rigid mica sheets for flat surfaces, panels, and structural insulation.
Custom fabrication may be required to meet exact dimensions and tolerances.
Environment and Application Conditions
Assess environmental exposure and mechanical stress.
Mica material must withstand conditions such as vibration, pressure, chemicals, and thermal cycling.
For example, foundry systems involve continuous heat and mechanical stress. EV battery systems require both thermal insulation and electrical isolation.
Matching the mica insulation material to these conditions improves long-term performance.
Quick Selection Guide
Use this guide to narrow down options:
- High temperature environments: Phlogopite mica sheets
- High electrical insulation requirements: Muscovite mica sheets
- Curved or irregular surfaces: Flexible mica sheet
- Flat or structural applications: Rigid mica sheets
lkThis framework helps identify the correct mica insulation sheet before reviewing detailed specifications.
Industrial Applications of Mica Sheets
Mica sheets are used in industries where thermal and electrical insulation directly affect system performance, safety, and service life. For comparison, review other thermal insulator examples to evaluate material performance across different conditions.
Electronics and Electrical Systems
Mica insulation is used to separate conductive components and prevent electrical failure. Its high dielectric strength allows stable insulation in high-voltage systems. Common uses include capacitors, circuit insulation, heating elements, and power components where consistent electrical performance is required.
Electric Vehicles and Automotive
In EV systems, mica insulation sheet materials act as thermal and electrical barriers within battery packs. Phlogopite mica sheets are used because they withstand high temperatures while maintaining electrical insulation. Custom mica barriers are fabricated to protect battery cells and reduce the risk of thermal runaway.
Aerospace Applications
Aerospace systems require materials that perform under heat, vibration, and strict safety requirements. Mica sheets are used in heat shields and insulation components within airframes and aircraft interiors. They provide thermal insulation while meeting weight and reliability requirements.
Foundry and High-Temperature Processing
In foundry systems, mica material is used in slip plane insulation and furnace components. Mica slip planes improve furnace structure and allow controlled thermal expansion. This reduces stress on furnace linings and extends equipment life. Consistent performance under continuous heat helps reduce downtime and improve operational efficiency.
Muscovite vs Phlogopite: Specifications Comparison
The table below outlines key differences between muscovite and phlogopite mica sheets based on Ax-Therm material data. Final values should be confirmed using the official data sheet before specification.
| Property | Muscovite Mica Sheets | Phlogopite Mica Sheets |
|---|---|---|
| Temperature Range (Continuous) | Up to 500°C | Up to 700°C |
| Temperature Range (Intermittent) | Up to 800°C | Up to 1000°C |
| Dielectric Strength | Higher dielectric performance | Moderate dielectric performance |
| Density | 2.2–2.3 g/cm³ | 2.2–2.3 g/cm³ |
| Thermal Conductivity | ~0.3 W/mK | ~0.3 W/mK |
| Thickness Range | Available in multiple thicknesses | Available in multiple thicknesses |
| Typical Applications | Electrical insulation, electronics, capacitors | High-temperature insulation, EV systems, furnaces, foundry |
This comparison provides a baseline for selecting the correct mica material. Final material selection should be based on full specification data and application requirements.
Why Choose Axim Mica?
Material performance depends on both the mica material and the consistency of manufacturing and supply. Axim Mica is an ISO 9001:2015 certified mica manufacturer and supplier. This ensures repeatable quality across every order.
Axim Mica supports industrial applications with three key advantages:
- Unmatched lead times: Axim maintains stock of mica sheets and components. This supports faster fulfillment and reduces production delays.
- Custom engineering: Engineers work directly with customers to produce precision mica sheet components based on exact dimensions, thickness, and performance requirements.
- ISO-certified quality: ISO 9001:2015 certification reflects controlled processes and consistent quality across all production runs.
These capabilities support applications where standard mica insulation materials are not sufficient. The correct mica sheets improve thermal stability, maintain electrical insulation, and extend service life in demanding environments.
For application-specific requirements, discuss your specifications with Axim Mica to identify the correct mica sheet and configuration.
FAQs About Mica Sheets
What is the maximum temperature mica sheets can handle?
The temperature limit depends on the type of mica sheets used. Phlogopite mica sheets can operate at higher temperatures, including environments approaching 1000°C. Muscovite mica sheets are used in lower temperature ranges where electrical insulation is the priority. Final values should be confirmed using the Ax-Therm data sheet.
What is the difference between mica sheets and other insulation materials?
Mica sheets provide both thermal resistance and electrical insulation. Compared to plastics, mica insulation maintains stability at higher temperatures. Compared to ceramic materials, mica sheet materials are easier to cut and fabricate while still providing strong dielectric performance.
Can mica sheets be custom cut or fabricated?
Yes. Mica sheet materials can be cut, shaped, and fabricated to match exact dimensions and configurations. Custom fabrication is commonly used in EV systems, aerospace components, and industrial equipment where precise fit is required.
How do I choose the right mica insulation sheet for my application?
Select the mica insulation sheet based on operating temperature, voltage requirements, and environmental conditions. Use phlogopite mica sheets for high-temperature applications. Use muscovite mica sheets for high dielectric performance. Also consider thickness, flexibility, and system geometry.
