High Temperature Insulation Materials and Their Applications

Effective management of extreme heat is essential in many industries. High temperature insulation is vital for controlling heat, improving efficiency, and ensuring safety. These materials are designed to withstand intense temperatures, minimizing energy loss and protecting equipment.

Industries such as aerospace, automotive, and manufacturing rely heavily on these insulation materials. They are used in applications ranging from furnaces to engines and turbines. Construction and power generation sectors also benefit significantly from high temperature insulation.

This guide will delve into the importance of these materials. It will explore common types and their various applications. You will understand how they enhance efficiency and safety in different industrial contexts.

Types of High Temperature Insulation Materials

High temperature insulation materials are vital for industries facing extreme heat. They protect equipment, save energy, and ensure safety. Let’s explore common high temperature insulation materials, starting with ceramic fiber insulation.

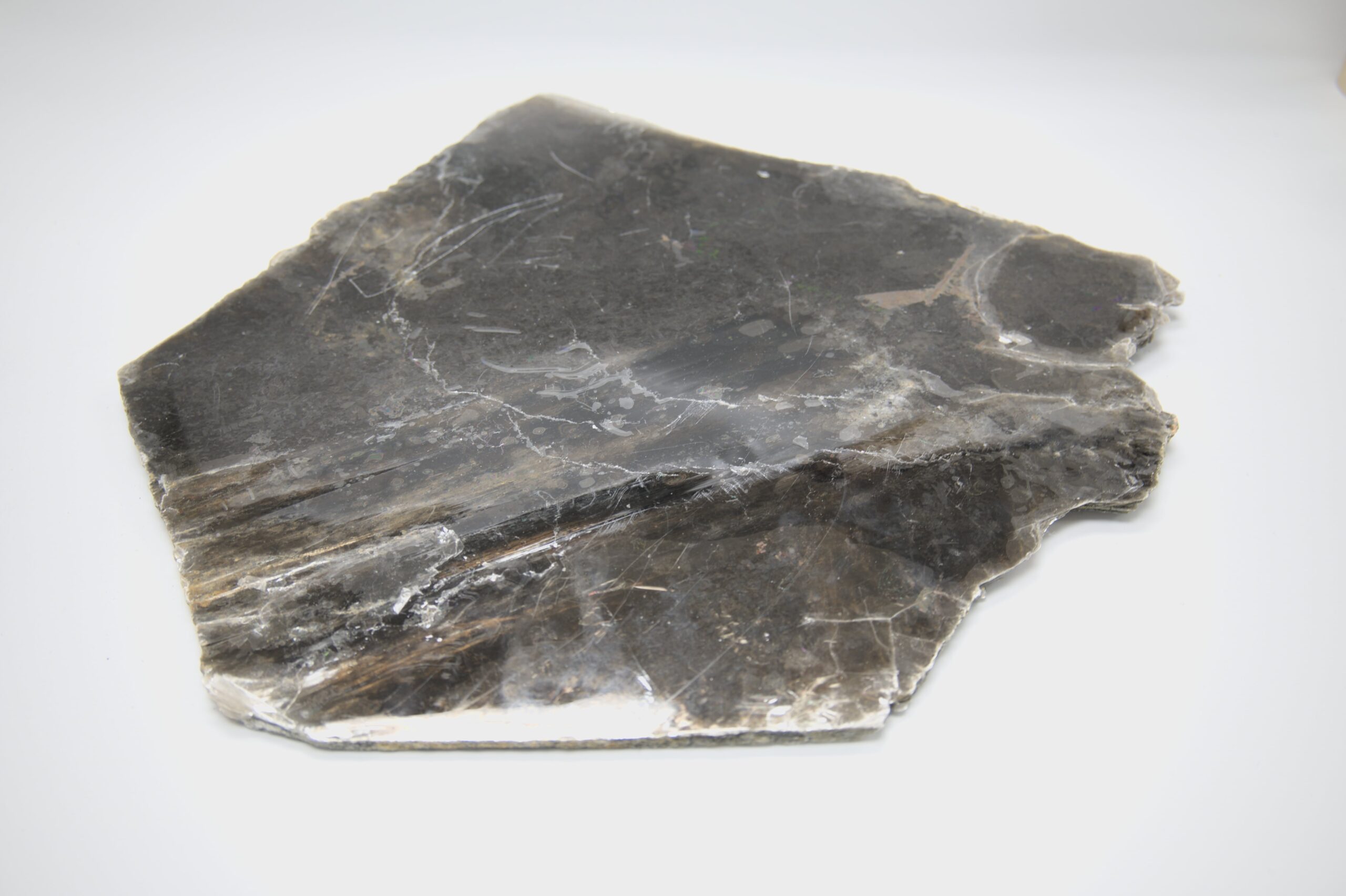

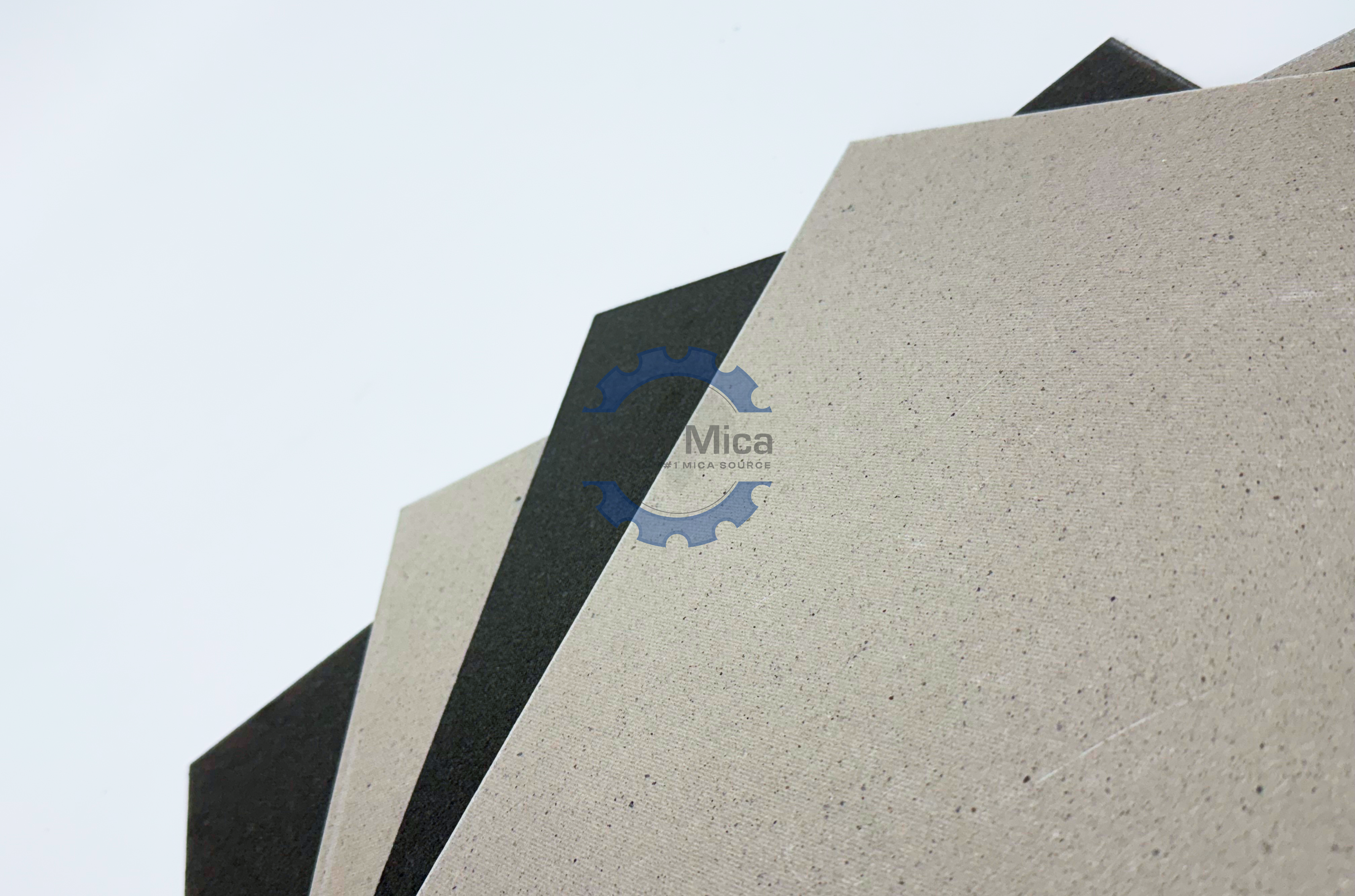

Mica Insulation

Mica insulation is a crucial material in high-temperature environments. It offers robust thermal protection and durability in various industrial applications.

Properties of Mica Insulation

• High temperature resistance: Withstands temperatures up to 1000°C
• Excellent dielectric strength: Resists electrical breakdown
• Thermal stability: Maintains performance under extreme heat
• Moisture resistance: Impervious to water absorption
• Chemical resistance: Withstands harsh chemicals

Limitations of Mica Insulation

• Brittleness: Mica can be fragile and may break under mechanical stress
• Cost: Higher cost compared to some other insulation materials
• Limited flexibility: Less adaptable for complex shapes

Applications of Mica Insulation

• Industrial Heating Equipment

Mica insulation is commonly used in industrial heating equipment. It ensures these devices operate efficiently without overheating. The insulation maintains high performance even under extreme conditions.

• Electrical Appliances

In electrical appliances, mica provides essential insulation. It prevents electrical faults and enhances safety. Common applications include toasters, hairdryers, and microwave ovens.

• Automotive Industry

The automotive industry uses mica insulation for components like spark plugs and heat shields. Its ability to endure high temperatures and vibrations makes it invaluable in this sector.

Why Choose Mica Insulation?

Choosing mica insulation ensures durability and safety. Its high temperature resistance and electrical properties make it a superior choice. Whether for industrial use or consumer products, mica delivers reliable performance.

Ceramic Fiber Insulation

Ceramic fiber insulation is a common material used for high temperature applications. This type of insulation is designed to withstand extreme temperatures while providing excellent thermal protection.

Ceramic fiber insulation is made from alumina and silica. These materials are processed to form lightweight fibers that can be woven or molded. The fibers are known for their low thermal conductivity, making them excellent insulators. They can resist temperatures up to 2300°F (1260°C).

Ceramic fiber insulation also has high thermal shock resistance. This means it can withstand rapid temperature changes without cracking or degrading. Also, it is lightweight and easy to handle, making it ideal for various applications.

Key Properties

• Lightweight: Easy to handle and install.
• Low Thermal Conductivity: Reduces heat loss and saves energy.
• High-Temperature Resistance: Maintains properties even at high temperatures.
• Durable: Long lifespan, reducing maintenance needs.
• Chemical Stability: Resistant to most chemicals, excluding strong acids and alkalis.
• Thermal Shock Resistance: Withstands rapid temperature changes.

Limitations of Ceramic Fiber Insulation

• Health Risks: Inhalation of fibers can be harmful, requiring proper safety measures.
• Cost: Higher initial cost compared to some other insulation materials.
• Mechanical Strength: Lower mechanical strength compared to some alternative materials, like refractory bricks.
• Moisture Absorption: Can absorb moisture, which might affect insulation performance.

Where a rigid refractory material with greater structural strength is required, insulating firebrick provides a high-temperature insulation option for furnaces, kilns, and other thermal-processing equipment.

Applications of Ceramic Fiber Insulation

• Industrial Furnaces

Ceramic fibers are used in industrial furnaces. They provide effective insulation, maintaining high temperatures efficiently. This is vital for processes like metal forging and glass production.

These insulation requirements are especially important in foundry and steel applications, where furnaces and metal-processing equipment operate continuously under extreme temperatures.

• Kilns

Kilns in pottery and ceramics benefit from ceramic fiber insulation. It ensures consistent temperatures, leading to better-quality products.

• Petrochemical Plants

In petrochemical plants, ceramic fiber insulation protects against heat. It is used in reactors and reformers, enhancing safety and efficiency.

• Power Plants

Power plants use ceramic fiber insulation to improve efficiency. It is applied in boilers and turbines to reduce heat loss.

Mineral Wool Insulation

Mineral wool insulation is a versatile high-temperature insulation material used in various applications. It includes different types such as glass wool, stone wool, and slag wool. Each type has unique properties that make them suitable for specific uses.

Properties of Mineral Wool Insulation

Mineral wool has unique properties that make it effective for insulation.

• High Thermal Resistance: Mineral wool has a high R-value. This means it resists heat flow effectively. It maintains temperature stability in extreme conditions.
• Fire Resistance: Mineral wool does not burn. It can resist temperatures up to 1,800°F. This makes it a safe choice for high temperature applications.
• Sound Absorption: Mineral wool has a dense, fibrous structure. This helps absorb sound waves. It reduces noise pollution in industrial settings.
• Chemical Resistance: Mineral wool is resistant to many chemicals. This includes acids and alkalis. It maintains its integrity in harsh environments.
• Durability: Mineral wool is durable and long-lasting. It does not shrink, settle, or decompose over time. This ensures consistent performance.

Applications of Mineral Wool Insulation

Mineral wool is used in many industries. Its high temperature resistance makes it versatile.

• Industrial Furnaces

Furnaces operate at very high temperatures. Mineral wool insulation ensures they work efficiently. It also protects workers from heat.

• Power Plants

Power plants generate a lot of heat. Mineral wool helps manage this heat. It improves plant safety and efficiency.

• Marine Industry

Ships and offshore platforms use mineral wool. It insulates engines and other high-temperature areas. This protects the vessel and crew.

Limitations of Mineral Wool Insulation

Despite its many benefits, mineral wool has some limitations.

• Moisture Absorption: Mineral wool can absorb moisture. This reduces its insulating properties. In wet environments, additional protection is needed.
• Cost: Mineral wool can be more expensive than other insulation materials. The initial investment is higher. However, the long-term benefits often outweigh the costs.
• Handling Precautions: Installing mineral wool requires protective gear. The fibers can irritate the skin, eyes, and respiratory system. Proper safety measures must be taken during installation.

Microporous Insulation

Microporous insulation is an exceptional material for high temperature environments. Its silica-based composition, combined with fine particle separation, makes it highly effective in various applications.
Microporous insulation is primarily made from silica. It uses fine particle separation techniques. This structure traps air within the material, which significantly reduces heat transfer.

Properties of Microporous Insulation

Microporous insulation has unique properties. These properties make it effective for high temperature insulation:

• Low Thermal Conductivity: Limits heat transfer, keeping temperatures stable.
• High Temperature Resistance: Can withstand extreme heat, often above 1000°C.
• Lightweight: Reduces the overall weight of insulated systems.
• Flexibility: Can be molded into various shapes and sizes for different applications.
• Durability: Resistant to mechanical damage and chemical attack.

Applications of Microporous Insulation

• Industrial Furnaces

Industrial furnaces reach very high temperatures. Microporous insulation keeps heat inside, saving energy. It also protects workers and equipment from heat damage.

• Aerospace

In aerospace, weight and efficiency are crucial. Microporous insulation provides top-notch thermal protection without adding much weight. It helps maintain safe temperatures in spacecraft and aircraft.

• Power Generation

Power plants operate at high temperatures. Microporous insulation enhances energy efficiency and safety. It is used in turbines, boilers, and other high-temperature equipment.

• Petrochemical Industry

The petrochemical industry relies on high-temperature processes. Microporous insulation helps manage these extreme conditions. It improves safety and operational efficiency in refineries and chemical plants.

• Fire Protection

Microporous insulation offers excellent fire resistance. It is used in fire doors, safes, and other fire protection systems. This helps prevent fire spread and protects valuable assets.

Limitations of Microporous Insulation

Despite its advantages, microporous insulation has some limitations:

• Cost: It can be more expensive than traditional insulation materials.
• Handling and Installation: Requires careful handling to avoid damage.
• Moisture Sensitivity: Some microporous insulation materials can absorb moisture, affecting performance.
• Compression: Excessive compression can reduce its insulation properties.

Applications of High Temperature Insulation Materials

High temperature insulation materials are crucial in many industries. They help manage extreme heat and ensure safety and efficiency. Here are key applications in various sectors.

Aerospace and Aviation

Thermal Protection Systems for Spacecraft

Spacecraft face extreme temperatures when entering and exiting the Earth’s atmosphere. High temperature insulation materials protect them from intense heat. These materials ensure that the spacecraft and its instruments remain undamaged.

Insulation for High-Speed Aircraft

High-speed aircraft encounter high temperatures due to air friction. Insulation materials help maintain structural integrity and protect critical components. They are vital for the safety and performance of these aircraft.

Industrial Furnaces and Kilns

High-Temperature Processing of Metals and Ceramics

Industrial furnaces and kilns operate at very high temperatures. High temperature insulation materials are used to line these units. This ensures efficient heat retention and protects the exterior structure.

Insulation for Maintaining Process Efficiency and Safety

Insulating industrial furnaces helps maintain consistent temperatures. This is crucial for process efficiency and product quality. Proper insulation also enhances safety by preventing heat loss and protecting workers.

Power Generation and Petrochemical Industries

Insulation for Turbines, Boilers, and Reactors

Power plants and petrochemical industries use turbines, boilers, and reactors. These components operate under extreme conditions. High temperature insulation materials ensure thermal efficiency and structural integrity. They help in maintaining optimal performance and safety standards.

Ensuring Thermal Efficiency and Structural Integrity

In power generation and petrochemical plants, thermal efficiency is key. Insulation materials reduce heat loss and improve energy efficiency. This leads to cost savings and reduced environmental impact. They also ensure the structural integrity of high-temperature equipment.

Construction and Fire Protection

Fire-Resistant Materials for Building Safety

In construction, fire-resistant materials are essential for safety. High temperature insulation materials can prevent the spread of fire. They are used in walls, ceilings, and floors to protect buildings and occupants.

Insulation for High-Temperature Industrial Environments

High-temperature insulation is also used in industrial environments. These materials protect against heat and fire hazards. They are crucial for maintaining safe working conditions and ensuring the longevity of equipment.

Conclusion

High-temperature insulation materials are crucial in many industries, ensuring efficiency and safety in extreme heat environments. These materials, such as ceramics, fiberglass, and mineral wool, help reduce energy consumption and maintain equipment integrity. They are widely used in aerospace, automotive, and manufacturing sectors.

Looking ahead, nanotechnology is set to bring more efficient insulation solutions. There’s a growing trend towards sustainable and eco-friendly materials. Additionally, smart materials with real-time monitoring capabilities are becoming more prominent.

Ongoing research and development are essential. Innovation in this field meets the evolving demands of high-temperature applications, creates more durable and cost-effective materials, and enhances the safety and longevity of industrial equipment. The future of high-temperature insulation looks promising with these advancements.
