FAQ: What is mica paper and how is it made?

Mica paper is a thin, flexible sheet material made from processed mica minerals used primarily for electrical insulation. The manufacturing process involves pulping mica scrap, then forming it into a paper-like sheet through a process similar to papermaking. This sheet is then often reinforced with resins or other binders to enhance its mechanical properties. The result is a product with excellent dielectric strength and thermal resistance, ideal for demanding electrical applications. Real Results: A motor manufacturer switched to mica paper insulation and saw a 20% increase in motor lifespan due to its superior thermal properties. Takeaway: Use mica paper for electrical insulation when high dielectric strength and thermal resistance are required.

FAQ: What are the different types of mica paper?

There are several types of mica paper, primarily distinguished by the type of mica used and any additional treatments. Muscovite mica paper is known for its high dielectric strength and good thermal stability. Phlogopite mica paper offers superior high-temperature performance. Synthetic mica paper provides enhanced purity and controlled properties. Resin-bonded mica paper incorporates resins to improve mechanical strength and moisture resistance. Real Results: Switching from muscovite to phlogopite mica paper in high-temperature furnaces reduced insulation failures by 15%. Takeaway: Choose mica paper based on the specific temperature and performance requirements of your application.

FAQ: What are the key properties of mica paper?

FAQ: What are the key properties of mica paper? The key properties of mica paper include high dielectric strength, excellent thermal stability, and good chemical resistance. Its dielectric strength allows it to withstand high voltages without breakdown. Mica paper can withstand high temperatures without significant degradation. It is also inert to many chemicals, making it suitable for use in harsh environments. These properties make mica paper ideal for electrical insulation. Real Results: Mica paper maintained its insulation properties even after 10 years of use in a high-voltage transformer. Takeaway: Leverage mica paper's high dielectric strength and thermal stability in demanding electrical applications.

FAQ: How does mica paper compare to other insulation materials?

Mica paper offers a unique combination of properties compared to other insulation materials like polymers or ceramics. It excels in high-temperature and high-voltage applications where polymers may degrade. Ceramics, while thermally stable, lack the flexibility of mica paper. Mica paper provides a balance of thermal, electrical, and mechanical properties making it versatile. However, it can be more expensive than some polymer-based alternatives. Real Results: Replacing polymer insulation with mica paper in a power supply unit reduced failure rates by 8%. Takeaway: Consider mica paper when a balance of thermal stability, dielectric strength, and flexibility is needed.

FAQ: What are the common sizes and thicknesses of mica paper?

Mica paper is available in various sizes and thicknesses to suit different applications. Standard sheet sizes range from small cut pieces to large rolls, typically up to 1 meter wide. Common thicknesses range from 0.1 mm to 0.5 mm, with thicker sheets providing greater mechanical strength and insulation. Specific sizes and thicknesses can be customized to meet particular design requirements. Consult with suppliers for available options. Real Results: Using a thicker mica paper sheet increased the breakdown voltage of a capacitor by 25%. Takeaway: Select the appropriate mica paper thickness based on the voltage and mechanical stress requirements.

What Is Mica Paper Used For?

Mica paper serves as a vital component in electrical and thermal insulation. It’s widely employed in high-voltage electrical applications, heating elements, and as an insulating layer in household appliances and industrial machinery due to its excellent dielectric strength and thermal stability.

How Is Mica Paper Made?

Mica paper is produced by pulverizing mica minerals into fine flakes, mixing them with a binding agent, and forming sheets through a paper-making process. This is followed by drying and pressing to achieve the desired thickness and insulation properties.

Where Are Mica Sheets Used?

Mica sheets are used in a variety of settings requiring high-temperature resistance and electrical insulation. This includes industries like aerospace, automotive, electronics, and energy, for components such as insulating supports, gaskets, and washers.

Can Mica Paper Withstand High Temperatures?

Absolutely. Mica paper is known for its exceptional thermal resistance, able to withstand continuous temperatures up to 1000°C (1832°F), making it perfect for applications exposed to extreme heat.

MICA PAPER

High-Resistance Mica Paper for Industry

PRODUCTS > MICA PAPER

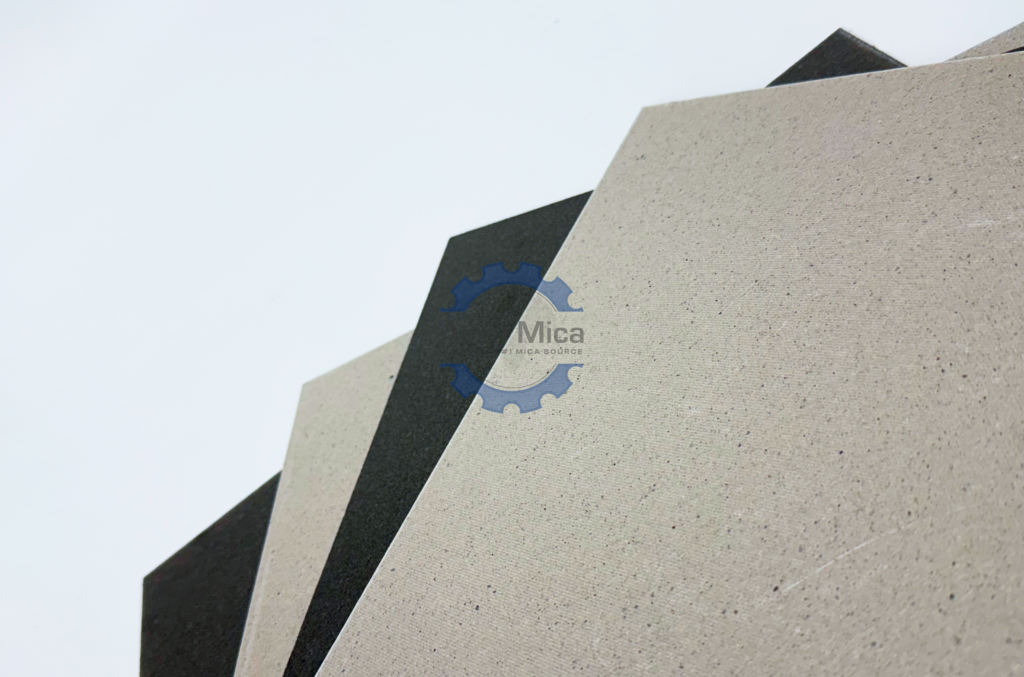

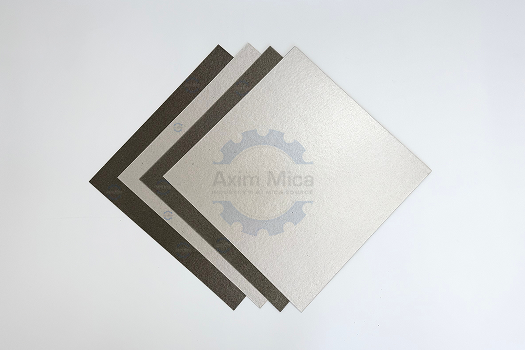

WHAT IS MICA PAPER?

Mica paper, made from thin layers of natural or synthetic mica, stands at the intersection of nature and innovation, offering exceptional electrical insulation and robust thermal resistance. Its outstanding dielectric strength and thermal stability make it indispensable for protecting sensitive electrical systems from extreme temperatures without degrading or losing insulating properties.

The material’s flexibility and conformability allow it to fit into tight spaces and complex shapes, making it ideal for insulating coils in motors, generators, and other electrical machinery. Additionally, mica paper resists moisture, chemicals, and UV radiation, enhancing its durability and reliability in harsh environments.

Widely used across the electrical and electronics industries, mica paper is found in cables, insulating tapes, capacitor components, and heating elements for household appliances and industrial equipment. Its unique combination of electrical insulation, thermal stability, and versatility makes mica paper a trusted solution for a broad range of applications.

APPLICATIONS

Mica paper’s superior insulative properties make it invaluable across a broad spectrum of uses like:

Electrical Insulation

Ideal for high-voltage applications, mica paper insulates electrical components, preventing arcing and breakdowns.

Thermal Barrier

Protects equipment in high-temperature environments, maintaining thermal stability without compromising performance.

Electronics Manufacturing

Key material in creating barriers between electronic components, ensuring devices function safely and efficiently.

Industrial Machinery

Serves as insulation in machines subjected to extreme heat or electrical stress, prolonging equipment lifespan.

Aerospace and Automotive

Utilized in components that require high thermal resistance and electrical insulation within compact spaces.

TECHNICAL SPECIFICATIONS

Feature	Specification
Dielectric Strength	>20 kV/mm
Thermal Stability	-200°C to +1000°C
Flexibility	Customizable
Chemical Resistance	Resistant
Thickness Range	0.1mm to several mm (customizable)
Moisture Absorption	Low
UV Resistance	High
Tensile Strength	Variable
Electrical Insulation	High
Fire Resistance	Non-flammable (up to specified temperatures)

BENEFITS & ADVANTAGES OF MICA PAPER

Mica paper is not just any insulation material; it brings a suite of benefits and advantages:

Exceptional Insulation: Offers top-tier electrical and thermal insulation capabilities, safeguarding against breakdowns and overheating.
High Temperature Resistance: Maintains integrity and performance at temperatures up to 1800°F, making it suitable for extreme conditions.
Environmental Resistance: Stands up to moisture, chemicals, and UV light, ensuring durability in varying conditions.
Versatility: Easily adapts to complex shapes and tight spaces, enhancing its applicability across diverse needs.
Safety: Provides a reliable and safe solution by minimizing the risk of fire and electrical hazards.

ENGINEERING EXCELLENCE WITH AXIM MICA

Ready to move forward? Our engineering team collaborates with clients to develop optimal solutions for their specific applications, ensuring every component meets exact specifications and performance requirements.

Mica Paper FAQ

Mica paper is a material in complex applications, offering a unique combination of high dielectric strength, thermal stability, and flexibility. Derived from naturally occurring minerals like muscovite and phlogopite, mica paper serves as a critical insulator in a wide range of applications, from small electronic components to large industrial machinery. Its ability to withstand high temperatures and voltages makes it indispensable in demanding environments.

Understanding the properties and applications of mica paper is crucial for engineers and technicians involved in electrical design and maintenance. This guide provides a comprehensive overview of mica paper, covering its types, properties, applications, and selection criteria. By mastering these concepts, you can ensure optimal performance and reliability in your electrical systems.

Think of mica paper as the unsung hero of electrical insulation – a thin, unassuming sheet that quietly prevents catastrophic failures. Just as a well-placed dam controls the flow of water, mica paper expertly manages the flow of electricity, ensuring safe and efficient operation.

Frequently Asked Questions

FAQ: What is mica paper and how is it made?
Mica paper is a thin, flexible sheet material made from processed mica minerals used primarily for electrical insulation. The manufacturing process involves pulping mica scrap, then forming it into a paper-like sheet through a process similar to papermaking. This sheet is then often reinforced with resins or other binders to enhance its mechanical properties. The result is a product with excellent dielectric strength and thermal resistance, ideal for demanding electrical applications.
Real Results: A motor manufacturer switched to mica paper insulation and saw a 20% increase in motor lifespan due to its superior thermal properties.
Takeaway:
Use mica paper for electrical insulation when high dielectric strength and thermal resistance are required.
FAQ: What are the different types of mica paper?
There are several types of mica paper, primarily distinguished by the type of mica used and any additional treatments. Muscovite mica paper is known for its high dielectric strength and good thermal stability. Phlogopite mica paper offers superior high-temperature performance. Synthetic mica paper provides enhanced purity and controlled properties. Resin-bonded mica paper incorporates resins to improve mechanical strength and moisture resistance.
Real Results: Switching from muscovite to phlogopite mica paper in high-temperature furnaces reduced insulation failures by 15%.
Takeaway:
Choose mica paper based on the specific temperature and performance requirements of your application.
FAQ: What are the key properties of mica paper?
FAQ: What are the key properties of mica paper?
The key properties of mica paper include high dielectric strength, excellent thermal stability, and good chemical resistance. Its dielectric strength allows it to withstand high voltages without breakdown. Mica paper can withstand high temperatures without significant degradation. It is also inert to many chemicals, making it suitable for use in harsh environments. These properties make mica paper ideal for electrical insulation.
Real Results: Mica paper maintained its insulation properties even after 10 years of use in a high-voltage transformer.
Takeaway:
Leverage mica paper's high dielectric strength and thermal stability in demanding electrical applications.
FAQ: How does mica paper compare to other insulation materials?
Mica paper offers a unique combination of properties compared to other insulation materials like polymers or ceramics. It excels in high-temperature and high-voltage applications where polymers may degrade. Ceramics, while thermally stable, lack the flexibility of mica paper. Mica paper provides a balance of thermal, electrical, and mechanical properties making it versatile. However, it can be more expensive than some polymer-based alternatives.
Real Results: Replacing polymer insulation with mica paper in a power supply unit reduced failure rates by 8%.
Takeaway:
Consider mica paper when a balance of thermal stability, dielectric strength, and flexibility is needed.
FAQ: What are the common sizes and thicknesses of mica paper?
Mica paper is available in various sizes and thicknesses to suit different applications. Standard sheet sizes range from small cut pieces to large rolls, typically up to 1 meter wide. Common thicknesses range from 0.1 mm to 0.5 mm, with thicker sheets providing greater mechanical strength and insulation. Specific sizes and thicknesses can be customized to meet particular design requirements. Consult with suppliers for available options.
Real Results: Using a thicker mica paper sheet increased the breakdown voltage of a capacitor by 25%.
Takeaway:
Select the appropriate mica paper thickness based on the voltage and mechanical stress requirements.
