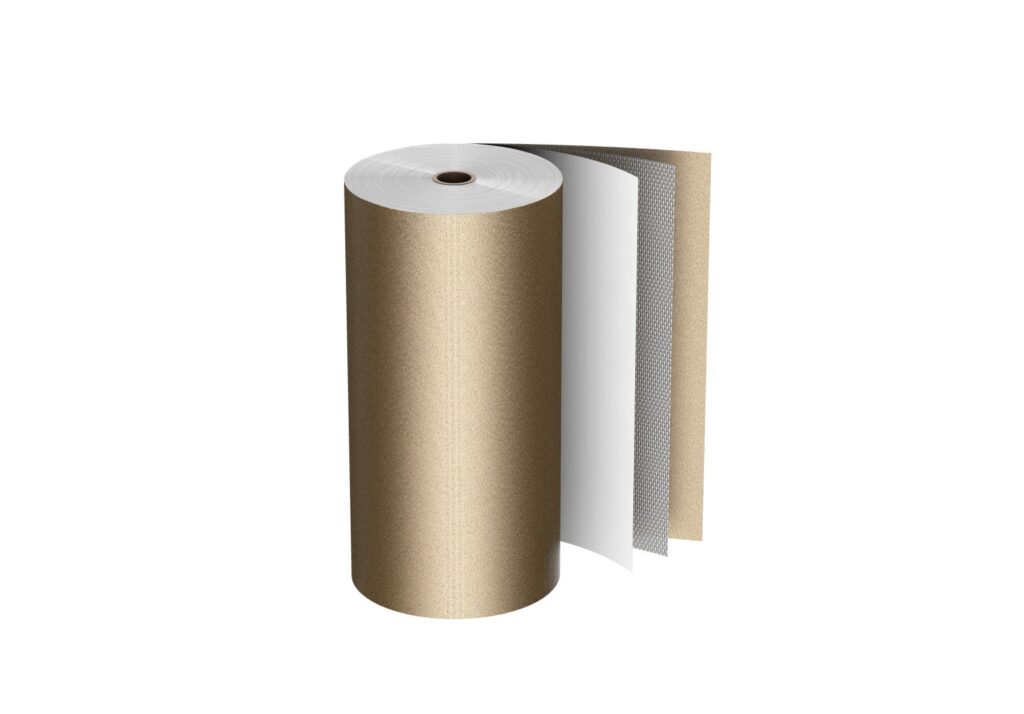

FLEXIBLE MICA COMPOSITES

Dielectric Mica is a natural mineral renowned for its exceptional electrical insulating properties, making it highly effective at resisting the flow of electricity. This mineral, typically found in igneous and metamorphic rocks, exhibits high dielectric strength, low dielectric loss, and excellent thermal stability. Its unique, layered atomic structure allows it to be cleaved into thin, flexible, and transparent sheets. These properties are crucial for preventing electrical breakdown and ensuring reliable performance in demanding electrical and electronic applications.

Takeaway: Dielectric Mica is a natural, high-performance insulator that is vital for protecting electrical components and ensuring system reliability.

Mica’s layered crystalline structure is fundamentally responsible for its excellent dielectric properties, as these atomic layers are tightly bound and chemically inert. This atomic arrangement creates a stable lattice that inhibits the movement of free electrons, thus preventing electrical conduction and breakdown. The strong internal bonds within layers, combined with weaker bonds between layers, allow it to be easily split into extremely thin, yet electrically robust sheets. This unique structure enables Mica to effectively store electrical energy while minimizing current leakage.

Takeaway: Mica’s layered structure provides an inherent, stable barrier against electrical flow, making it an ideal insulator.

The primary types of Mica used as dielectrics are Muscovite and Phlogopite, each offering distinct advantages based on its chemical composition. Muscovite Mica, often called “potash Mica,” is preferred for its superior electrical properties, including higher dielectric strength and lower dielectric loss, which makes it ideal for moderate temperature applications. Phlogopite Mica, or “magnesium Mica,” excels in high-temperature environments due to its greater thermal stability, although its electrical properties are slightly less robust. A third type, synthetic Mica, is engineered for extreme conditions, surpassing natural Mica’s thermal limits.

Takeaway: Choose Muscovite for electrical excellence at moderate temperatures, Phlogopite for high-temperature resilience, or synthetic for extreme heat.

Mica is preferred over many other insulating materials due to its unique combination of high dielectric strength, excellent thermal stability, and mechanical durability, particularly in demanding environments. Unlike plastics, Mica maintains its insulating properties at extreme temperatures and frequencies, resisting degradation from heat, chemicals, and radiation. Its non-flammable nature and resistance to moisture absorption also provide superior safety and longevity compared to organic insulators. My experience in rebuilding vintage electronics taught me that some applications simply demand Mica’s robust, unchanging performance.

Takeaway: Mica offers unparalleled reliability in harsh electrical, thermal, and chemical conditions where other materials fail.

Dielectric strength is the maximum electric field that an insulating material can withstand without electrical breakdown. It’s absolutely crucial for Mica as it defines its primary utility. This property indicates Mica’s ability to act as an effective barrier against high voltages, preventing current from flowing through it. For Mica, an exceptionally high dielectric strength (often >100 kV/mm) means that it can reliably isolate live conductors in compact designs and high-voltage applications. Without sufficient dielectric strength, an insulator would fail, leading to short circuits and system damage, hence why it’s a cornerstone property for Mica.

Takeaway: High dielectric strength is Mica’s superpower, ensuring reliable insulation and preventing electrical breakdowns in high-voltage scenarios.
