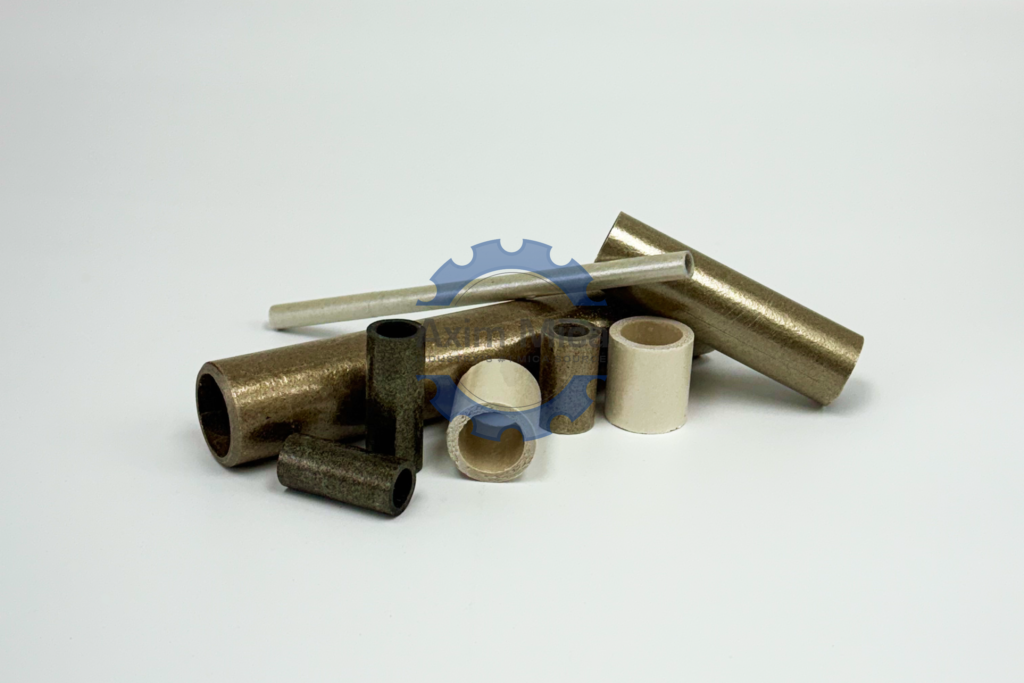

Mica Tubes

When ordering mica tubes, don’t envision a standard cylindrical tube.  Mica tubes can be customized in terms of shape, thickness, length, diameter, and material.  Since mica tubes are formed by multiple layers of mica paper, customizing mica tubes is very manageable.

AXIM’s mica tubes can withstand temperatures ranging from 130°C to 1000°C for high temperature and high voltage applications. We manufacture high temperature mica tubing in square, round, oval or rectangular shapes.

Our mica tubes meet NEMA standards and are convolute wound to increase strength and minimize seam lengths. These mica tubes are prepared by using mica paper or splitting mica fixed with glue or by using mica paper glued on side of reinforced material, then processed rolling. It has excellent mechanical strength and electrical properties. Suitable for all kinds of electric motors and electrical appliances, electrical smelt furnace, etc.

Size: Mica tubes are available in lengths between 3mm and 1000mm (0.19” and 40”) and an inner diameter between 3mm and 300mm (0.12” and 12”).

Have a requirement for extra-long tubes? We have your solution. Contact us.

Do you have a challenging application? AXIM can manufacture mica tubes of custom specifications based on the client’s requirements/drawings.

Let's Quote on Your Next Project

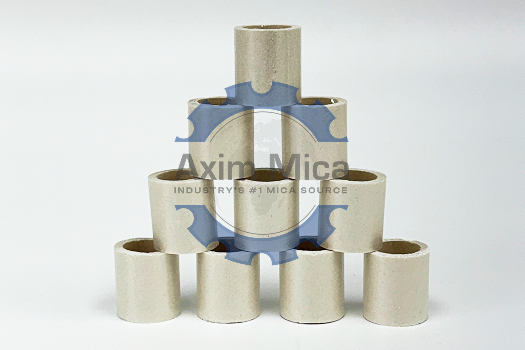

Quality Mica Tubes by Axim Mica

Precision Engineered for Durability and Performance

Improve your production game with high-quality mica tubes from North America’s #1 mica manufacturer and supplier. Tailor-made to fit your specifications, our mica tubes withstand extreme conditions, guaranteeing efficient manufacturing processes and indestructible products.

AXIM’s mica tubes can withstand temperatures ranging from 130°C to 1000°C for high temperature and high voltage applications. We manufacture high temperature mica tubing in square, round, oval or rectangular shapes.

Step into the future of manufacturing with mica tubes that set the standard for quality and reliability.

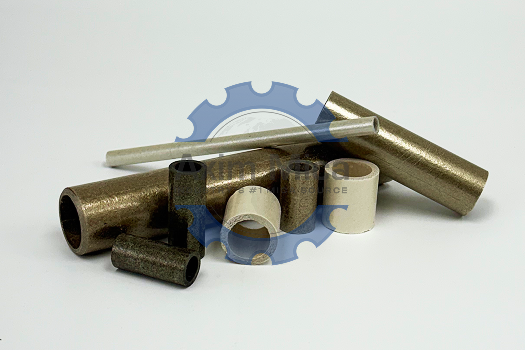

What are Mica Tubes?

Mica tubes are crafted from high-grade mica materials, known for their superior insulation properties. These tubes, hailing from the naturally occurring mineral mica, are pivotal in electrical and thermal insulation applications. Their construction involves wrapping mica paper around a mandrel, which is then hardened with silicone resin.

Traditionally used in electric motors, generators, and transformers, mica tubes offer exceptional dielectric strength and heat resistance, making them a cornerstone in industries requiring robust, reliable insulation solutions.

Why AXIM Mica Tubes?

Axim Mica Tubes: Where durability meets versatility for all your manufacturing needs

Custom Fit for Precision Projects

Your unique project deserves a precise fit, something off-the-shelf options can’t always offer. Axim Mica Tubes are customizable in shape, size, and material, ensuring you get exactly what you need. No more compromising on innovation due to material limitations.

Engineered for the Extremes

Feel confident using Axim Mica Tubes in environments where others falter. Enduring temperatures from 130°C to 1000°C, they’re built for the tough jobs. It’s more than just a tube; it’s the safety harness in high-temp, high-voltage applications.

Strength That Supports

Our mica tubes aren’t just about surviving high temperatures; they’re constructed to strengthen your projects. With convolute winding, we minimize seams and maximize durability. It’s the kind of reliability that lets you focus on innovation, not infrastructure.

Simplifying Integration

We get it—complexity slows you down. That’s why Axim Mica Tubes are designed for seamless integration into your existing processes. Our tubes offer the mechanical strength and electrical properties essential for motors and appliances, simplifying your product development cycle.

A Partnership in Materials

Choosing Axim means more than just getting high-quality mica tubes; it’s about having a partner who understands the challenges of manufacturing. We’re here to help navigate material selection, ensuring you have the best for your application. It’s not just about selling; it’s about achieving success together.

How Mica Tube is Made

Our mica tubes meet NEMA standards and are convolute wound to increase strength and minimize seam lengths. These mica tubes are prepared by using mica paper or splitting mica fixed with glue or by using mica paper glued on the side of reinforced material, then processed rolling.

It has excellent mechanical strength and electrical properties. Suitable for all kinds of electric motors and electrical appliances, electrical smelt furnaces, etc.

Industries Trusting Axim Mica Tubes

  • Electrical & Electronics Industry

    Insulation in high-voltage and high-temperature equipment, such as electric motors, generators, and transformers. Mica tubes provide excellent dielectric strength and thermal stability.

  • Aerospace & Defense

    Components requiring exceptional thermal resistance and electrical insulation under extreme conditions, including insulation for aerospace wiring and defense electronics.

  • Automotive Industry

    Thermal barriers in electric and hybrid vehicles, insulation in ignition systems, and components requiring high mechanical strength and heat resistance.

  • Home Appliances

    Heating elements in appliances like toasters, hair dryers, and microwaves where high temperature resistance is crucial for safety and efficiency.

  • Industrial Manufacturing

    Protective insulation in industrial furnaces, smelt furnaces, and other high-temperature processing equipment to enhance durability and performance.

  • Renewable Energy

    Insulation in wind turbines and solar panels contributes to the durability and efficiency of renewable energy systems.

  • Research & Development Labs

    Prototype development and testing where components must withstand extreme conditions, ensuring reliability and accuracy in experiments.

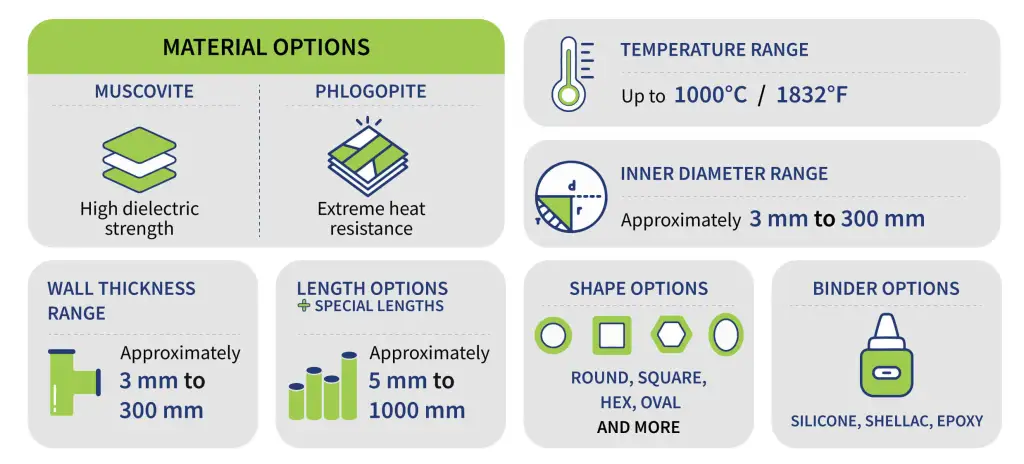

Mica Tubes Grades, Specifications and Customization Options

High-Quality Construction

Material: Choose between Muscovite or Phlogopite mica tube based on your temperature requirements and mechanical properties.

Binders: Options include Epoxy, Silicone, or Shellac for optimal bonding and application-specific performance.

High-Temperature Adaptability

Range: Capable of withstanding temperatures up to 1800°F (about 982°C), ideal for high-temperature applications across industries.

Extensive Shape Options

Shapes Offered: Beyond traditional round tubes, we provide Hexagonal, Oval, Rectangular, Octagonal, Square, and even Diamond-shaped tubes to fit unique project specs.

Custom Shapes: Tailored configurations available to meet precise design requirements.

Mechanical and Electrical Resilience

Dielectric Strength: Superior insulation capabilities with a dielectric strength adjusted to different wall thicknesses, ensuring safety and functionality in electrical applications.

Electrical Resistance: Mica tubes offer excellent electrical resistance, making them suitable for high-voltage insulation needs.

Dimensional Specifications for Precision Fit

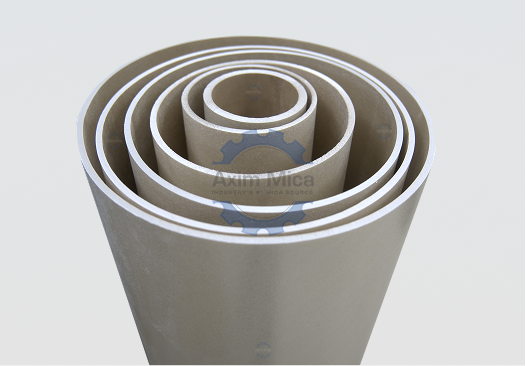

Inside Diameter: From a minimum of 0.125 inches (about 3.2mm) to a maximum of 25 inches (about 635mm), accommodating small to large-scale applications.

Wall Thickness: Ranging from 0.015 inches (about 0.38mm) minimum to 1.0 inches (about 25.4mm) maximum for tailored protection and strength.

Lengths: Available from 0.2 inches (about 5mm) minimum to 45 inches (about 1143mm) maximum, with special order lengths upon request.

Special Features

Inorganic Composition: Some tubes are made from mica paper bonded with proprietary silicate binders for exceptional heat resistance.

Application-Specific Design: Whether it’s for core insulation in power coils or high-temperature bushings, our tubes are designed to meet unique industry challenges.

Customization Based on Technical Needs

Tailored Solutions: We welcome discussions on technical specifications, including dimensions, shapes, types of mica, and binders, to create custom tubes that meet your exact needs

Order Your Custom Mica Today!

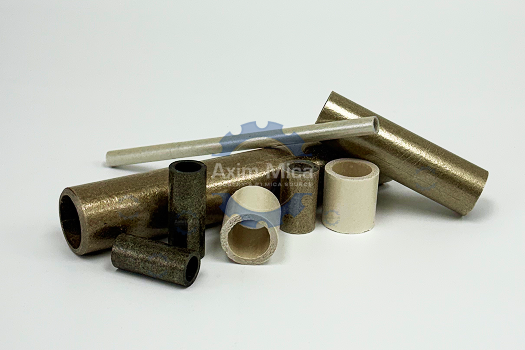

Benefits and Advantages of Using Mica Tubes for Your Projects

Mica tubes are indispensable in projects requiring insulation, durability, and thermal resistance. Their high dielectric strength, thermal stability, and resistance to extreme temperatures make them ideal for electrical, thermal, and mechanical applications. Let’s look at the key benefits, positioning mica tubes as a superior material choice for a wide range of projects.

  • Enhance Durability with Layered Construction

    Layered mica tubes significantly boost the strength of components. This construction method fortifies products against the stresses and strains of daily use, ensuring longevity and reliability in demanding environments.

  • Works for Any Design

    The ability to choose from various shapes, including square, round, oval, and rectangular, empowers designers and engineers. This versatility supports innovative and complex designs, providing the freedom to meet specific project requirements with ease.

  • Increases Product Lifespan with Convolute Winding

    Convolute winding enhances the structural integrity of mica tubes, reducing seam lengths and potential weak points. This method ensures products can withstand rigorous applications, extending their usable life and reducing the need for frequent replacements.

  • Provides Electrical and Insulation Benefits

    Mica tubes are pivotal in applications requiring robust electrical insulation and mechanical stability, such as in electric motors and appliances. Their exceptional properties help improve product performance, making them integral to the manufacturing process of electrical and high-temperature devices.

The Axim Mica Advantage

Working with Axim Mica transcends the usual supplier-buyer relationship. It’s about joining forces with a team that has thrived in the mica domain for two decades and counting. We consider every customer our teammate, a valued collaborator. It’s in our DNA to constantly refine our approach, ensuring our mica tubes slot seamlessly into your workflow, enhancing productivity.

Moreover, we understand the importance of dependability in keeping your operations stress-free. Choosing Axim Mica means relying on timely, pristine deliveries. Beyond just manufacturing, we stand as co-creators of your success, dedicated to supplying the essential materials you require precisely when needed. This commitment to excellence and partnership is what sets the Axim Mica experience apart.

About Axim Mica

At Axim Mica, we’re driven by over two decades of expertise in providing mica solutions. Our commitment to excellence, building trust, and innovation ensures reliable, performance-enhancing products, making us your trusted partner in advancement.

Quality Assurance: ISO Certified Mica Supplier

Axim Mica is proud to be an ISO-certified supplier, a testament to our unwavering quality standards. We provide mica tubes that have undergone rigorous checks, offering you reliability and excellence in every product, every time.

Order Your Custom Mica Today!

Hassle-Free Order and Fulfillment Process

Step 1: Define Your Specs

Just like picking out the perfect outfit, let us know the size, shape, and material you need. Whether it’s for a standard project or something a bit more custom, we’re here to help. Share your specifications, including length, inner diameter, and any special requirements you have in mind. Mica tubes are available in lengths between 3mm and 1000mm (0.19” and 40”) and an inner diameter between 3mm and 300mm (0.12” and 12”).

Have a requirement for extra-long tubes? We have your solution. Contact us.

Step 2: Material Matchmaking

We’ll pair your project with the ideal mica material, considering your application’s thermal and electrical demands. If you’re unsure, no worries – we’re here to suggest whether muscovite or phlogopite mica fits best, ensuring your tubes stand up to the heat, literally.

Step 3: Your Custom Tube Comes to Life

Once we’ve got all the details down, our team gets to work rolling and baking your mica tubes to perfection. We’ll keep you updated and, once they’re ready, our quality assurance ensures everything’s up to scratch. Then, it’s straight to your doorstep, safely packed for the journey.

Simple as that. Getting your hands on top-notch mica tubes has never been easier. Ready to start? Reach out, and let’s make things happen.

Frequently Asked Questions

Yes, mica tubes are designed for high thermal resistance, reliably operating in environments with temperatures up to 1000°C, making them ideal for applications requiring superior heat insulation.

Absolutely. We tailor mica tubes to specific diameters, lengths, and thicknesses to meet your unique application requirements, ensuring a perfect fit for your insulation needs.

Yes, mica tubes offer excellent electrical insulation properties, protecting against electrical surges and enhancing safety in electrical equipment and high-voltage applications.
